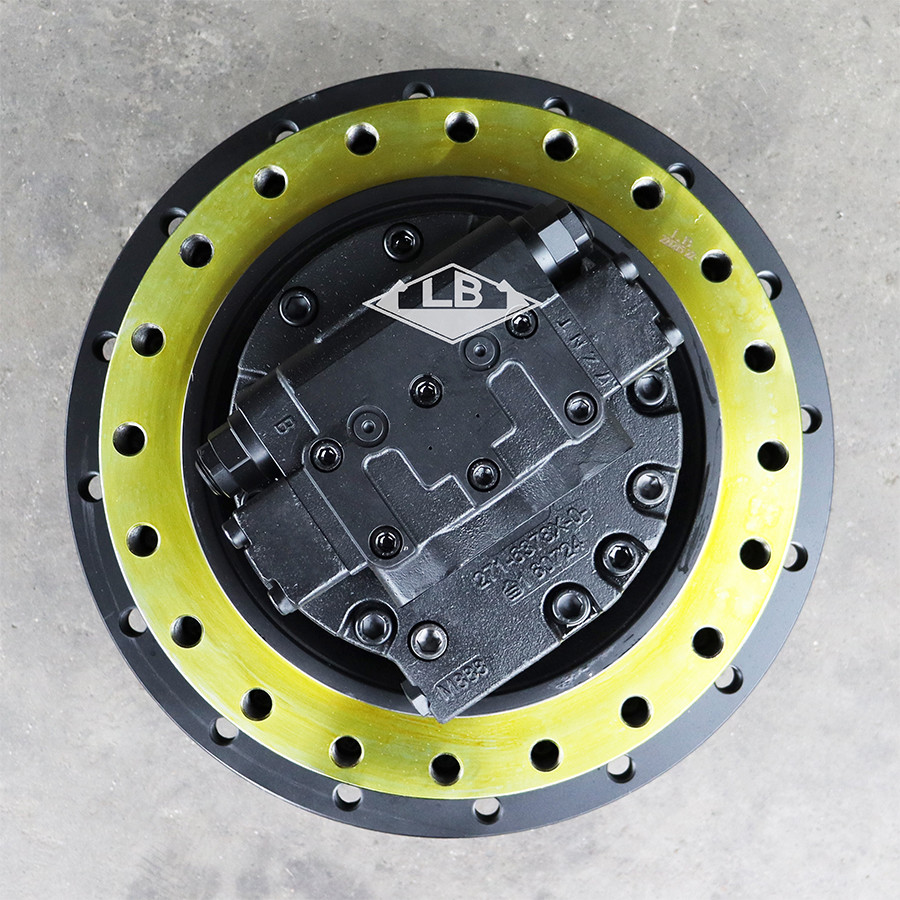

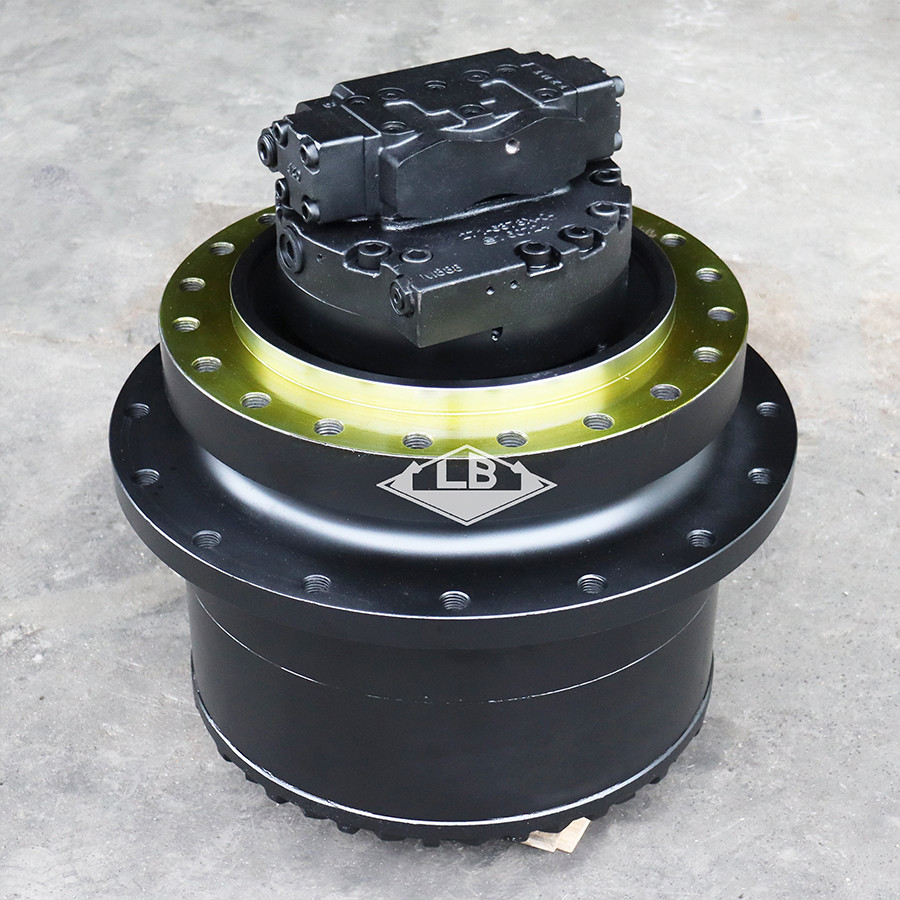

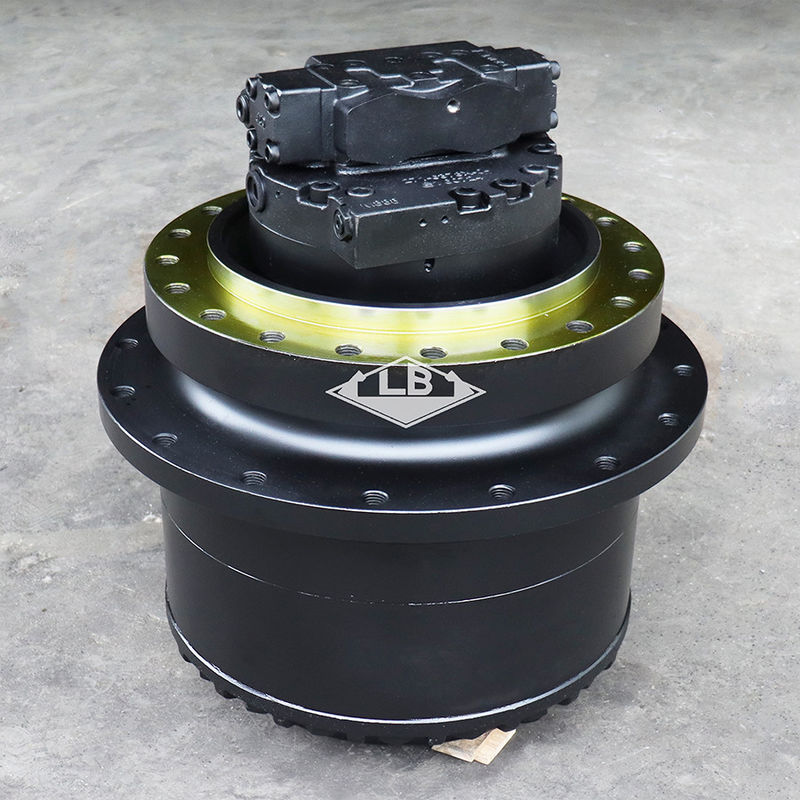

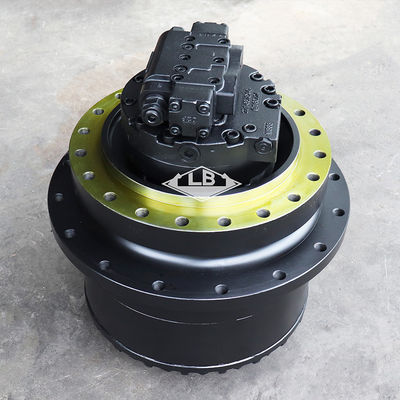

E 330C 330D E330 Final Drive 296-6217 227-6188 227-6195 199-4578 353-0601 296-6218 227-6289 227-6196
Dettagli:
Miglior prezzo Contatto
Informazioni dettagliate |
|||
Evidenziare: | 330D Final Drive 20 buchi,E330 Ultima unità,296-6217 |
---|
Descrizione di prodotto
E 330C 330D E330 Finale 296-6217 227-6188 227-6195 199-4578 353-0601 296-6218 227-6289 227-6196
Parametri del prodotto
Pnome d'arte | E330 Ultima guida | |||||
Attrezzature | Applicare a E EXCAVATOR | |||||
La parte no. | 353-0601 296-6218 227-6289 | |||||
Fori del telaio | 20 | |||||
Fori a motore | 24 | |||||
Condizione dell'articolo | Nuovo | |||||
Il logo | LB | |||||
Peso lordo | 460 kg | |||||
MOQ | 1 pc |



Descrizione del prodotto

Ricambi per il vostro 330D L EXCAVATOR:
In posizione. | Parte n. | Quota | Nome delle parti | Commenti |
---|---|---|---|---|
1. | 3E-2338 | Altri prodotti | Piombo di presa | |
2. | 7Y-0639 | Altri prodotti | GIAGGIO-SOLI(21-TEETH) | |
3. | 7Y-0642 | Altri prodotti | RINGO D'INGRESSI(63-TEETH) | |
4. | 7Y-0643 | Altri prodotti | Trasportatore | |
5. | 7Y-0645 | Altri prodotti | Trasportatore | |
6. | 7Y-0659 | Altri prodotti | GER-PLANETARY(22-TEETH) | |
7. | 7Y-0661 | Altri prodotti | SHAFT-PLANETARY | |
8. | 7Y-0662 | Altri prodotti | SHAFT-PLANETARY | |
9. | 7Y-0663 | Altri prodotti | GER-PLANETARY(20-DENTE) | |
10. | 7Y-0667 | Altri prodotti | RITENZIONE dell'anello | |
11. | 7Y-0673 | Altri prodotti | RINGO D'INGRESSI(73 denti) | |
12. | 7Y-0676 | Altri prodotti | GER-PLANETARY(24-TEETH) | |
13. | 7Y-0731 | Altri prodotti | CARRIER AS | |
13A. | 7Y-0656 | Altri prodotti | SHAFT-PLANETARY | |
14. | 7Y-1056BJ | Altri prodotti | SHIM(0,8-MM THK) | |
7Y-1057BJ | Altri prodotti | SHIM(1-MM THK) | ||
267-6809BJ | Altri prodotti | SHIM(0,75-MM THK) | ||
267-6810BJ | Altri prodotti | SHIM(0,85-MM THK) | ||
267-6811BJ | Altri prodotti | SHIM(0,9-MM THK) | ||
267-6812BJ | Altri prodotti | SHIM(0,95-MM THK) | ||
267-6813BJ | Altri prodotti | SHIM(1.2-MM THK) | ||
267-6814BJ | Altri prodotti | SHIM(1.4-MM THK) | ||
267-6815BJ | Altri prodotti | SHIM(1.8-MM THK) | ||
267-6816BJ | Altri prodotti | SHIM(2-MM THK) | ||
267-6817BJ | Altri prodotti | SHIM(2,3 mm THK) | ||
16. | 7Y-1094M | [14] | Lavatrice(66X102X1-MM THK) | |
17. | 7Y-5235M | [20] | BOLT(M24X3X190-MM) | |
18. | 094-0577 | Altri prodotti | Scaffalatura(7-MM THK) | |
19. | 094-0578 | Altri prodotti | Scaffalatura(8-MM THK) | |
20. | 094-0579 | Altri prodotti | Scaffalatura(9-MM THK) | |
21. | 094-0580 | Altri prodotti | Scaffalatura(10-MM THK) | |
22. | 110-7231 | Altri prodotti | GIAGGIO-SOLI(18-DENTE) | |
23. | 114-1541J | [6] | PIN-DOWEL | |
24. | 191-2521 | Altri prodotti | GIAGGIO-SOLI(23-TEETH) | |
25. | 191-2526 | Altri prodotti | COVER | |
26. | 199-4582 | Altri prodotti | Sostituzione | |
27. | 199-4583 | [11] | Sostituzione | |
28. | 227-6190J | Altri prodotti | Motore di alloggiamento | |
29. | 227-6191J | Altri prodotti | Abitazione(SPROCKET) | |
30. | 227-6192J | Altri prodotti | Accoppiamento di ingranaggi(66 denti) | |
31. | 255-2272C.J. | Altri prodotti | SEAL GP-DUO-CONE | |
205-9114 | Altri prodotti | RING-TORIC | ||
41. | 279-0344J | Altri prodotti | Codice di produzione | |
42. | 093-1731 | Altri prodotti | RITENZIONE dell'anello | |
43. | 094-0584 | [6] | Lavatrice(40.3X72X1-MM THK) | |
44. | 095-0891 | [17] | SPRING-PIN | |
45. | 096-3216M | Altri prodotti | SETSCREW-SOCKET (sEtolatore)(M12X1.75X12-MM) | |
46. | 191-2645 | Altri prodotti | Accoppiamento | |
47. | 2P-3628 | Altri prodotti | SEAL-O-RING | |
48. | 6V-8133JM | Altri prodotti | BOLT(M24X3X80-MM) | |
49. | 6V-8237J | Altri prodotti | Lavatrice26X44X4-MM THK) | |
50. | 7M-8485 | Altri prodotti | SEAL-O-RING | |
51. | 7Y-0595 | Altri prodotti | SPACER(58X79.6X6-MM THK) | |
52. | 7Y-0644 | Altri prodotti | SPACER(163X190X8-MM THK) | |
53. | 8T-4167 | [20] | Dura da lavare26X44X4-MM THK) | |
54. | 8T-4240 | Altri prodotti | RITENZIONE dell'anello | |
55. | 9X-6032M | [12] | Capo di bullone-sEena(M10X1.5X30-MM) | |
56. | 1U-8846B | TASCHETTA SELANTE | ||
Disponibile kit di riparazione: | ||||
296-6219J | Altri prodotti | Sostituzione del kit(Final Drive) | ||
B | Utilizzare se necessario | |||
C | Cambio dal tipo precedente | |||
J | COSTITUZIONE MAREURA J SERVIZI PARTE (S) MAREURA J | |||
M | Parte metrica |
