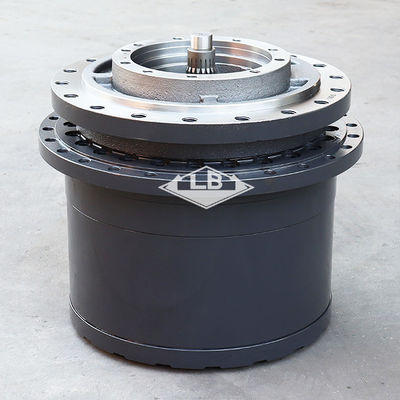

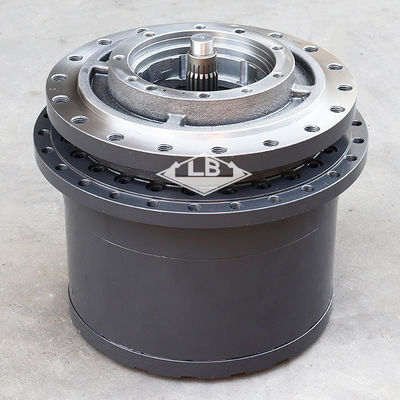

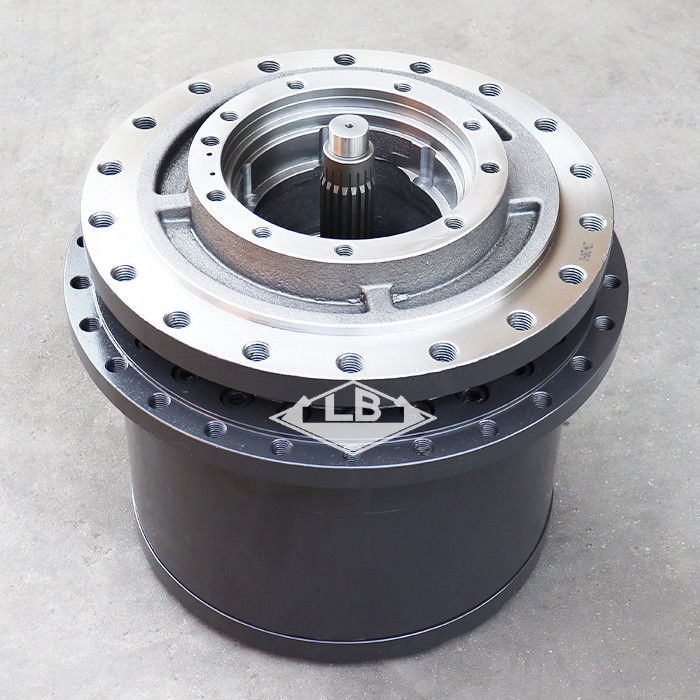

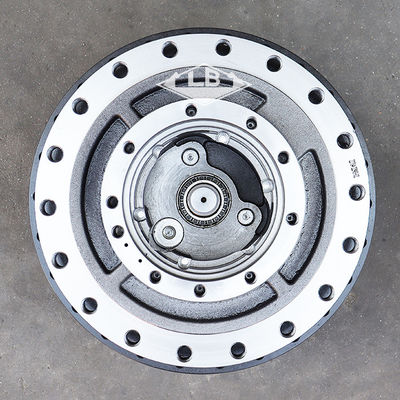

SK350-8 REDUZIONE DEL VIAGGIO LC15V00023F1 LC15V00023F2R LC15V00023F2C SK350-8 REDUZIONE DEL VIAGGIO per escavatori Kobelco
Dettagli:
Miglior prezzo Contatto
Informazioni dettagliate |
|||
Evidenziare: | CAMBIO DI VIAGGIO,spinta finale,azionamento finale idraulico |
---|
Descrizione di prodotto
Parametri del prodotto
Pnome d'arte | SK350-8 cambio di marcia | |||||
Attrezzature | Applicare a Kobelco EXKAVATOR | |||||
La parte no. | LC15V00023F1 LC15V00023F2R | |||||
Fori del telaio | 18 | |||||
Fori a motore | 26 | |||||
Condizione dell'articolo | Nuovo | |||||
Il logo | LB | |||||
Peso lordo | 350 kg | |||||
MOQ | 1 pc |
Descrizione del prodotto

In posizione. | Parte n. | Quota | Nome delle parti | Commenti |
---|---|---|---|---|
. . | LC15V00023F1 | Altri prodotti | Motore idraulico | KOBAssemblaggio, incl. LC15V00026F1 -- Non indiEo Sostituito dal numero di parte: LC15V00023F2 |
. . | LC15V00023F2R | Altri prodotti | Motore REMAN-HYD | KOBSK350-8 ACERA MARK 8 EXCAVATOR - TIER 3 ASN YC08U~ (NA) (10/06-), REMAN FOR NEW PN LC15V00023F1 |
. . | LC15V00023F2C | Altri prodotti | MOTORE CORE idraulico | KOBNumero di restituzione |
. . | LC15V00026F1 | Altri prodotti | Motore idraulico | KOBMotore idraulico sostituito da parte numero: LC15V00026F2 |
1. | LC53D00007S018 | Altri prodotti | Abitazione | KOB |
2. | 24100U1682S19 | Altri prodotti | Sostituzione a sfera | KOB |
3. | LC53D00007S017 | Altri prodotti | GIAGGIO | KOBAnello |
4. | ZS23C18110 | [25] | Vettura, testa di presa, M18 x 110 mm | KOBM18x2,50x110 mm |
5. | 24100U1743S24 | Altri prodotti | SEAL | KOB |
6. | 24100U1682S20 | Altri prodotti | SHIM | KOB |
7. | 24100U1682S21 | Altri prodotti | Lavatrice di serrature | KOB |
8. | 24100U1682S22 | Altri prodotti | Anello | KOB |
9. | LC53D00007S011 | Altri prodotti | Trasportatore | KOB |
10. | LC15V00023S010 | Altri prodotti | GIAGLIO PLANETARIO | KOB |
11. | LC53D00007S016 | [6] | Lavatrice | KOBSpinta |
12. | LC15V00023S012 | Altri prodotti | Sostituzione | KOBAglio |
13. | LC53D00007S012 | Altri prodotti | Trasportatore | KOB |
14. | ZP26D10050 | Altri prodotti | Numero PIN | KOBSPRING |
15. | LC15V00023S015 | Altri prodotti | GIAGGIO | KOBIl sole |
16. | LC53D00007S002 | Altri prodotti | Trasportatore | KOB |
17. | LC15V00023S017 | Altri prodotti | GIAGLIO PLANETARIO | KOB |
18. | LC53D00007S005 | [6] | Lavatrice | KOBSpinta |
19. | LC15V00023S019 | Altri prodotti | Sostituzione | KOBAglio |
20. | LC53D00007S003 | Altri prodotti | Numero PIN | KOB |
21. | ZP26D06036 | Altri prodotti | Numero PIN | KOBRollo -- OD 06 x 36 mm di lunghezza |
22. | LC15V00023S022 | Altri prodotti | GIAGGIO | KOBIl sole |
23. | LQ15V00005S008 | Altri prodotti | Scaffalatura | KOB |
24. | LC15V00023S024 | Altri prodotti | COVER | KOB |
25. | ZS28C10030 | [18] | Velo, testa di presa, M10 x 30 mm | KOBM10x1,50x30 mm |
26. | L'indice di emissione deve essere conforme alle prescrizioni del presente regolamento. | Altri prodotti | PULGO | KOB |
27. | ZD12P02400 | Altri prodotti | O-RING | KOBID 23,70 ± 0,24 x OD 30 mm |
28. | LC15V00023S028 | Altri prodotti | CASE C-280/99 Commissione delle Comunità europee | KOB |
29. | LC15V00023S029 | Altri prodotti | PULGO | KOB |
30. | 2441U1040S27 | Altri prodotti | Anello | KOB |
31. | 2441U1040S19 | Altri prodotti | COVER | KOB |
32. | 2436U1749S17 | Altri prodotti | PULGO | KOB |
33. | NSS | Altri prodotti | Non venduto separatamente | CONPISTONE |
34. | NSS | Altri prodotti | Non venduto separatamente | CONSEAL, PISTON |
35. | LC15V00023S035 | Altri prodotti | BALL | KOB |
36. | 2441U1040S9 | Altri prodotti | Fabbricazione | KOB |
37. | 2441U1040S31 | Altri prodotti | Sostituzione dei rulli | KOB |
38. | NSS | Altri prodotti | Non venduto separatamente | CONPIVOT |
39. | NSS | Altri prodotti | Non venduto separatamente | CONPiatto, scarpa. |
40. | LC15V00023S040 | Altri prodotti | BLOCCO | KOBCILINDRO |
41. | 2441U1030S29 | [19] | SPRING | KOB |
42. | LC15V00023S042 | Altri prodotti | TITOLO | KOB |
43. | LC15V00021S024 | Altri prodotti | FUSO DEL BALLO | KOB |
44. | LC15V00021S004 | Altri prodotti | Sostituzione | KOBCalzature |
45. | GK15V00003S014 | [19] | PISTONE | KOBAssia |
46. | 2441U1040S7 | [17] | Scaffalatura | KOBSeparatore |
47. | 2441U1040S5 | [6] | Scaffalatura | KOB |
48. | 2441U1040S6 | Altri prodotti | PISTONE | KOB |
49. | LS15V00004S052 | Altri prodotti | O-RING | KOBO-RING |
50. | LS15V00004S053 | Altri prodotti | O-RING | KOB |
51. | LC15V00023S051 | Altri prodotti | COVER | KOB |
52. | 2436U1427S25 | [14] | PULGO | KOB |
53. | LC15V00023S053 | Altri prodotti | SPOOL | KOB |
54. | LC15V00023S054 | Altri prodotti | SEDILE di molla | KOB |
55. | Codice di riferimento: | Altri prodotti | SPRING | KOB |
56. | LC15V00023S056 | Altri prodotti | COVER | KOB |
57. | ZD12G04000 | Altri prodotti | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39,40 ± 0,37 x OD 45 mm |
58. | LC15V00023S058 | Altri prodotti | SPOOL | KOB |
59. | 2436R874S6 | Altri prodotti | Numero PIN | KOB |
60. | 2436R874S5 | Altri prodotti | SEDILE di molla | KOB |
61. | 2436R874S7 | Altri prodotti | SPRING | KOB |
62. | LC15V00023S062 | Altri prodotti | PULGO | KOB |
63. | ZD12P01400 | Altri prodotti | O-RING | KOBID 13,80 ± 0,19 x OD 18 mm |
64. | 2436R874S3 | Altri prodotti | Articulazione flessibile | KOB |
65. | 2436U1317S13 | Altri prodotti | PULGO | KOB |
66. | ZD12P01100 | Altri prodotti | O-RING | KOBID 10,8 mm x OD 13,2 mm |
67. | LC15V00023S067 | Altri prodotti | Restrittorie | KOB |
68. | LC15V00023S068 | Altri prodotti | SPRING | KOB |
69. | Sistemi di misurazione del rischio | Altri prodotti | PULGO | KOB |
70. | ZD12P00800 | Altri prodotti | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7,8 mm x OD 9,7 mm |
71. | Codice di riferimento: | Altri prodotti | Valvola di controllo | KOB |
72. | Codice di riferimento: | Altri prodotti | SPRING | KOB |
73. | GN15V00010S024 | Altri prodotti | Restrittorie | KOB |
74. | ZD12P01250 | Altri prodotti | O-RING | KOBID 12,3 mm X OD 14,7 mm |
75. | GN15V00010S025 | Altri prodotti | Restrittorie | KOB |
76. | ZD12P01500 | Altri prodotti | O-RING | KOBID 14,80 ± 0,20 x OD 19 mm |
77. | 2441U1040S40 | Altri prodotti | O-RING | KOB |
78. | 2441U1040S32 | Altri prodotti | Sostituzione dei rulli | KOB |
79. | LS15V00014S033 | Altri prodotti | SHIM | KOBSostituito dal numero di parte: 2441U1040S34 |
80. | 2441U1040S35 | Altri prodotti | Numero PIN | KOB |
81. | LC15V00021S008 | Altri prodotti | Scaffalatura | KOBValvola |
82. | YN15V00003S030 | Altri prodotti | SPRING | KOB |
83. | ZS23C18050 | Altri prodotti | Vettura, testa di presa, M18 x 50 mm | KOBM18x2,50x50 mm |
84. | LC22V00006F1 | Altri prodotti | Valvola | KOBAssy, sovraccarico rilievo vedere ((HC385) |
85. | 2441U1040S10 | Altri prodotti | Articolo di aggancio | KOB |
86. | ZR26X04000 | Altri prodotti | Anello | KOBRitenuta -- ID 40 x OD 43,5 x Th 1,8 mm |
87. | L'indice di emissione deve essere conforme alle prescrizioni di cui all'allegato II. | Altri prodotti | PULGO | KOB |
88. | ZD12P01800 | Altri prodotti | O-RING | KOBID 17,8 mm x OD 20,2 mm |
K. | LC15V00023R100 | Altri prodotti | KIT | SMRef 33x1 34x1 |
K. | LC15V00023R200 | Altri prodotti | KIT | SMRif 38x2 39x1 |
K. | LC15V00023R300 | Altri prodotti | KIT | SMRif 46x7 47x6 |
