E320 E320B E320C E320D Travel Gearbox E 320 199-4584 227-6035 296-6299 227-6949 Final Drive
Dettagli:
Miglior prezzo Contatto
Informazioni dettagliate |
|||
Evidenziare: | E320 E320B Gearbox di viaggio,E320C E320D Travel Gearbox,E 320 199-4584 Trasmissione a trazione finale |
---|
Descrizione di prodotto

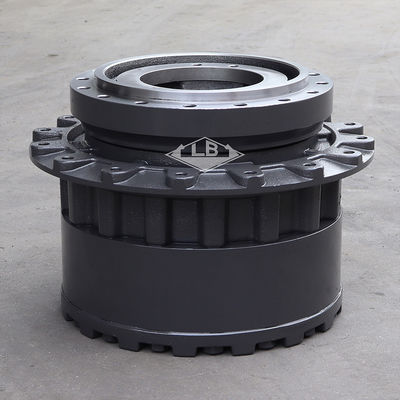

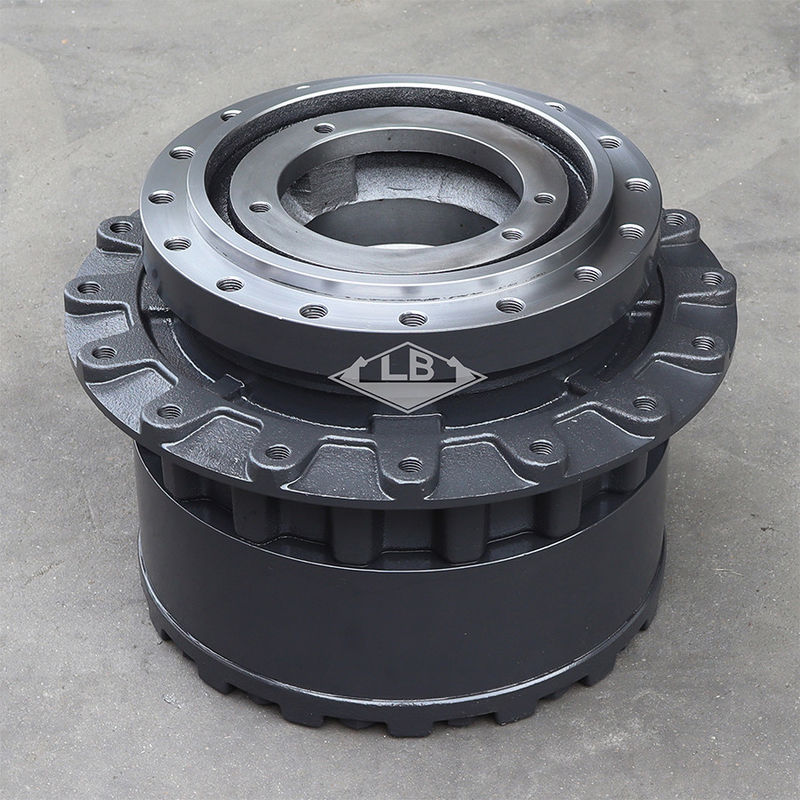

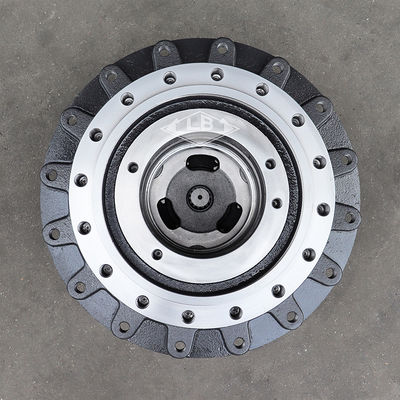

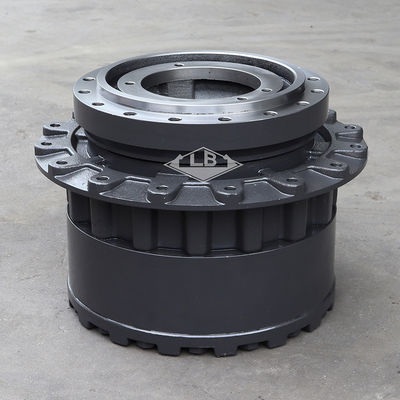

E320 E320B E320C E320D Travel Gearbox E 320 199-4584 227-6035 296-6299 227-6949 Azionamento finale senza motore
Parametri del prodotto
Pnome d'arte | E320B E320C E320D cambio di marcia | |||||
Attrezzature | Applicare a E EXCAVATOR | |||||
La parte no. | 199-4584 227-6035 227-6949 | |||||
Fori del telaio | 16 | |||||
Fori a motore | 16 | |||||
Condizione dell'articolo | Nuovo | |||||
Il logo | LB | |||||
Peso lordo | 278 kg | |||||
MOQ | 1 pc |
Descrizione del prodotto
Ricambi per il tuo escavatore 320C:
In posizione. | Parte n. | Quota | Nome delle parti | Commenti |
---|---|---|---|---|
1. | 7Y-1434 | Altri prodotti | SPACER40X69,5X6-MM THK) | |
2. | 096-1773B | Altri prodotti | SHIM(0,15-MM THK) | |
096-1774B | Altri prodotti | SHIM(0,3-MM THK) | ||
096-1775B | Altri prodotti | SHIM(0,4-MM THK) | ||
096-1776B | Altri prodotti | SHIM(0,5-MM THK) | ||
096-1777B | Altri prodotti | SHIM(0,6-MM THK) | ||
096-1778B | Altri prodotti | SHIM(0,7-MM THK) | ||
096-1779B | Altri prodotti | SHIM(0,8-MM THK) | ||
096-1780B | Altri prodotti | SHIM(1-MM THK) | ||
096-1781B | Altri prodotti | SHIM(1.6-MM THK) | ||
11. | 6V-3303M | [14] | BOLT(M16X2X60-MM) | |
12. | 7Y-0223 | Altri prodotti | SHAFT-PLANETARY | |
13. | 094-1542 | [6] | Codice di riferimento: | |
14. | 7Y-1431 | Altri prodotti | GER-PLANETARY(30-DETTI) | |
15. | 094-1528 | [6] | Lavatrice(53X84X1-MM THK) | |
16. | 095-0891 | [6] | SPRING-PIN | |
17. | 6I-6585 | Altri prodotti | GER-PLANETARY(44-TEETH) | |
18. | 094-0616 | Altri prodotti | SOSTITUZIONI AS-ROLLER | |
19. | 3E-2338 | Altri prodotti | Piombo di presa | |
20. | 7M-8485 | Altri prodotti | SEAL-O-RING | |
21. | 7Y-1426 | Altri prodotti | COVER | |
22. | 7Y-0225 | Altri prodotti | SHAFT-PLANETARY | |
23. | 094-0611 | [6] | Lavatrice(47.3X76X1-MM THK) | |
24. | 094-0580 | Altri prodotti | Scaffalatura(10-MM THK) | |
25. | 6I-6583 | Altri prodotti | GIAGGIO-SOLI(13-TEETH) | |
26. | 7Y-1430 | Altri prodotti | GIAGGIO-SOLI(17-DENTE) | |
27. | 7Y-1558 | Altri prodotti | SPACER(90X119.6X7.5-MM THK) | |
28. | 7Y-1432 | Altri prodotti | Trasportatore | |
29. | 7X-2568M | [16] | BOLT(M20X2.5X180-MM) | |
30. | 8T-4123 | [16] | Lavatrice22X35X3,5-MM THK) | |
31. | 1U-8846B | TASCHETTA SELANTE | ||
33. | 148-4705 | Altri prodotti | RINGO D'INGRESSI(104-TEETH) | |
34. | 7Y-1433 | Altri prodotti | Trasportatore | |
35. | 6D-0692 | Altri prodotti | SEAL-O-RING | |
36. | 148-4715 | Altri prodotti | Accoppiamento di ingranaggi(55 denti) | |
37. | 114-1539 | [6] | PIN-DOWEL | |
38. | 191-3235 | Altri prodotti | Abitazione | |
39. | 168-8451 | Altri prodotti | Sostituzione a sfera | |
40. | 114-1497 | Altri prodotti | SEAL GP-DUO-CONE | |
41. | 191-3236 | Altri prodotti | Abitazione | |
42. | 095-1270M | Altri prodotti | SETSCREW-SOCKET (sEtolatore)(M12X1.75X30-MM) | |
43. | 148-4708 | Altri prodotti | RINGO D'INGRESSI(79-TEETH) | |
B | Utilizzare se necessario | |||
M | Parte metrica |
