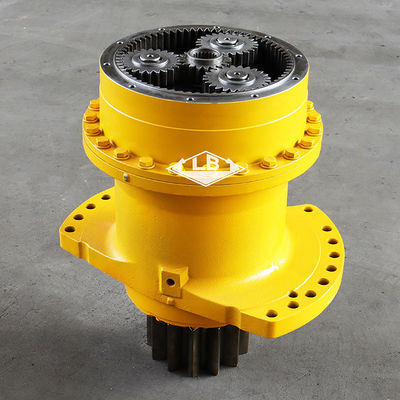

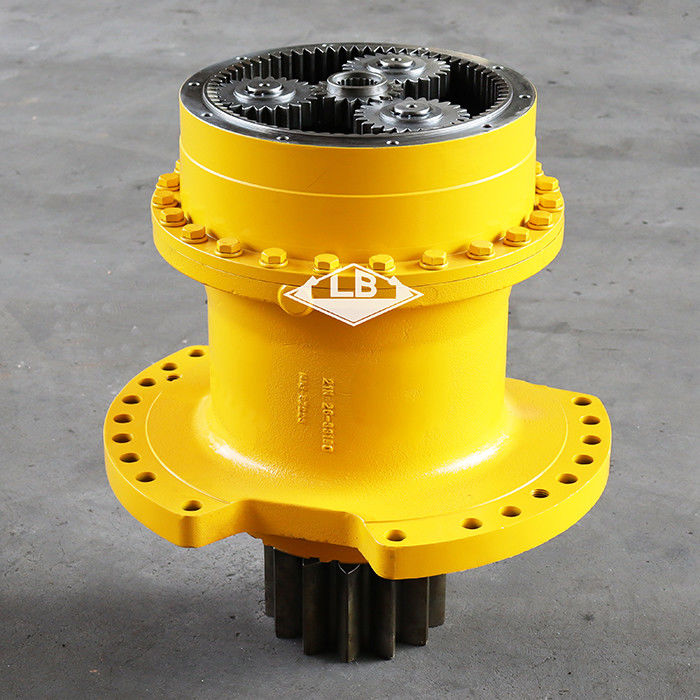

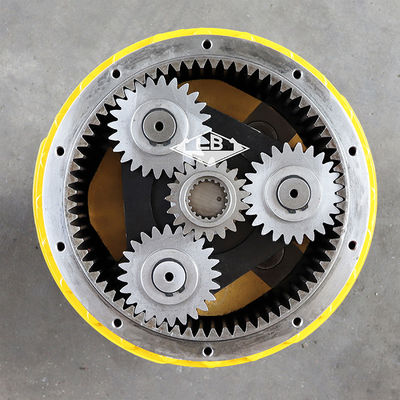

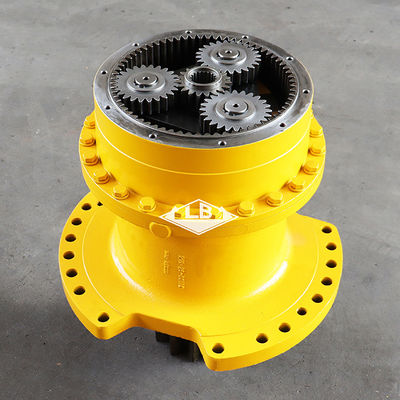

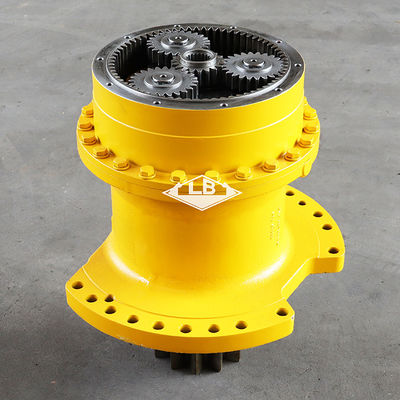

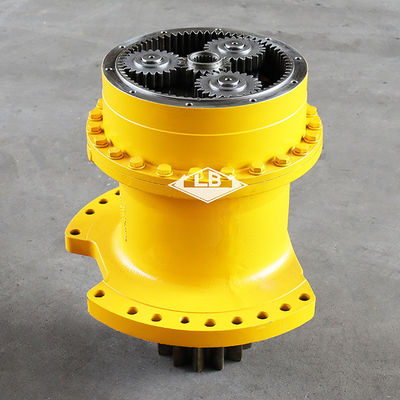

PC1250-8 SINGING MACHINERY ASSEMBLY 21N-26-00110 21N-26-00120 21N-26-00140 21N2600110 21N2600120 21N2600140 PC1250-8 Swinging GEARBOX
Dettagli:
Miglior prezzo Contatto
Informazioni dettagliate |
|||
Evidenziare: | Escavatore Swing Gearbox,Dispositivo di riduzione dell'oscillazione,Casella di cambio a trasmissione oscillante |
---|
Descrizione di prodotto
Parametri del prodotto
Pnome d'arte | PC1250-8 Transmitter oscillante | |||||
Attrezzature | Applicare a KOMATSU EXKAVATOR | |||||
La parte no. | 21N-26-00110 21N-26-00120 | |||||
NO.1 denti di spline dell'attrezzatura solare | 18 spline | |||||
Denti dell'albero del pignone oscillante | 13 T | |||||
Condizione dell'articolo | Nuovo | |||||
Il logo | LB | |||||
Peso lordo | - Non lo so. | |||||
MOQ | 1 pc |
Descrizione del prodotto
Parti del gruppo:
In posizione. | Parte n. | Quota | Nome delle parti | Commenti |
---|---|---|---|---|
21N-26-00110 | Altri prodotti | Assemblaggio di macchine oscillatriciComatsu | 0.000kg. | |
["SN: 30158-UP"] $0. | ||||
1. | 21N-26-33190 | Altri prodotti | CasoComatsu | 172kg. |
["SN: 30158-UP"] | ||||
2. | 07049-02430 | Altri prodotti | CollegamentoComatsu | 0.003kg. |
["SN: 30158-UP"] | ||||
3. | 06000-23124 | Altri prodotti | PortamentoComatsu | 7.867kg. |
["SN: 30158-UP"] | ||||
4. | 21N-26-31140 | Altri prodotti | PortamentoComatsu | 33.1kg. |
["SN: 30158-UP"] | ||||
5. | 21N-26-31110 | Altri prodotti | FabbricazioneComatsu | 87kg. |
["SN: 30158-UP"] | ||||
6. | 208-26-61291 | Altri prodotti | Sello, olioComatsu | 0.5kg. |
[SN: 30158-UP"] analoghi: ["2082661290"] | ||||
7. | 21N-26-33230 | Altri prodotti | CoperturaCina Komatsu | |
["SN: 30158-UP"] | ||||
8. | 01010-81030 | [12] | BoltKomatsu OEM | 0.03kg. |
[SN: 30158-UP] analoghi: ["801015110", "M018011000306", "YM26116100302", "0101051030"] | ||||
9. | 01643-31032 | [12] | LavatriceComatsu | 0.054kg. |
[SN: 30158-UP"] analoghi: ["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
10. | 07000-15390 | Altri prodotti | O-ringKomatsu OEM | 0.05kg. |
["SN: 30158-UP"] | ||||
11. | 208-26-71181 | Altri prodotti | PortatoreComatsu | 19kg. |
[SN: 30158-UP] analoghi: ["2082671180"] | ||||
12. | 208-26-71140 | Altri prodotti | AttrezzaturaComatsu | 4.72kg. |
["SN: 30158-UP"] | ||||
13. | 207-27-61230 | Altri prodotti | PortamentoComatsu | 0.65kg. |
["SN: 30158-UP"] | ||||
14. | 20Y-27-21250 | [8] | Lavatrice, spintaCina Komatsu | 0.03kg. |
["SN: 30158-UP"] | ||||
15. | 207-27-61250 | Altri prodotti | PinCina Komatsu | 1.75kg. |
["SN: 30158-UP"] | ||||
16. | 20Y-27-21290 | Altri prodotti | PinKomatsu OEM | 0.03kg. |
["SN: 30158-UP"] | ||||
17. | 208-26-71230 | Altri prodotti | PiastraCina Komatsu | |
["SN: 30158-UP"] | ||||
18. | 205-32-51211 | Altri prodotti | BoltComatsu | 0.17kg. |
["SN: 30158-UP"] | ||||
19. | 208-26-71151 | Altri prodotti | AttrezzaturaCina Komatsu | |
["SN: 30158-UP"] | ||||
20. | 01010-81645 | [25] | BoltCina Komatsu | 0.104kg. |
[SN: 30158-UP"] analoghi: ["0101061645", "801015187", "0101031645", "0101051645", "37A0911184", "801014184"] | ||||
21. | 01643-31645 | [25] | LavatriceComatsu | 0.072kg. |
[SN: 30158-UP] Analoghi: ["802170005", "0164301645"] | ||||
22. | 208-26-71130 | Altri prodotti | AttrezzaturaComatsu | 5.1kg. |
["SN: 30158-UP"] | ||||
23. | 208-26-71241 | Altri prodotti | PiastraComatsu | 0.06kg. |
["SN: 30158-UP"] | ||||
24. | 208-26-71170 | Altri prodotti | PortatoreComatsu | 7.65kg. |
["SN: 30158-UP"] | ||||
25. | 207-26-71520 | Altri prodotti | AttrezzaturaComatsu | 2kg. |
["SN: 30158-UP"] | ||||
26. | 22U-26-21320 | Altri prodotti | PortamentoComatsu | 1.1kg. |
["SN: 30158-UP"] | ||||
27. | 22U-26-21240 | [6] | LavatriceComatsu | 0.6kg. |
["SN: 30158-UP"] | ||||
28. | 207-26-71210 | Altri prodotti | PinComatsu | 0.66kg. |
["SN: 30158-UP"] | ||||
29. | 04064-04018 | [6] | Ring, Snap.Comatsu | 0.001kg. |
[SN: 30158-UP] analoghi: ["802250040"] | ||||
30. | 208-26-71210 | Altri prodotti | TenitoreComatsu | 0.42kg. |
["SN: 30158-UP"] | ||||
31. | 04260-01270 | Altri prodotti | PallaKomatsu OEM | 0.009kg. |
["SN: 30158-UP"] | ||||
32. | 207-26-71510 | Altri prodotti | AttrezzaturaKomatsu OEM | 1.52kg. |
["SN: 30158-UP"] | ||||
33. | 207-26-71261 | Altri prodotti | PiastraKomatsu OEM | 0.15kg. |
["SN: 30158-UP"] | ||||
34. | 207-26-71610 | Altri prodotti | CoperturaCina Komatsu | |
["SN: 30158-UP"] | ||||
35. | 01010-81240 | Altri prodotti | BoltComatsu | 0.052kg. |
[SN: 30158-UP] analoghi: ["801015573", "0101051240"] | ||||
36. | 01643-31232 | Altri prodotti | LavatriceComatsu | 0.027kg. |
["SN: 30158-UP"] analoghi: ["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
37. | 07042-30617 | Altri prodotti | Collegamento, TaperCina Komatsu | |
["SN: 30158-UP"] | ||||
38. | 07042-30108 | Altri prodotti | CollegamentoComatsu | 0.008kg. |
["SN: 30158-UP"] Analoghi: ["0704220108"] |
