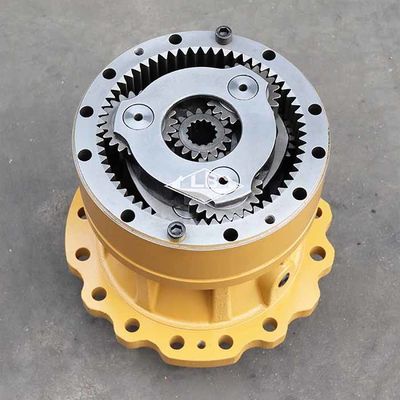

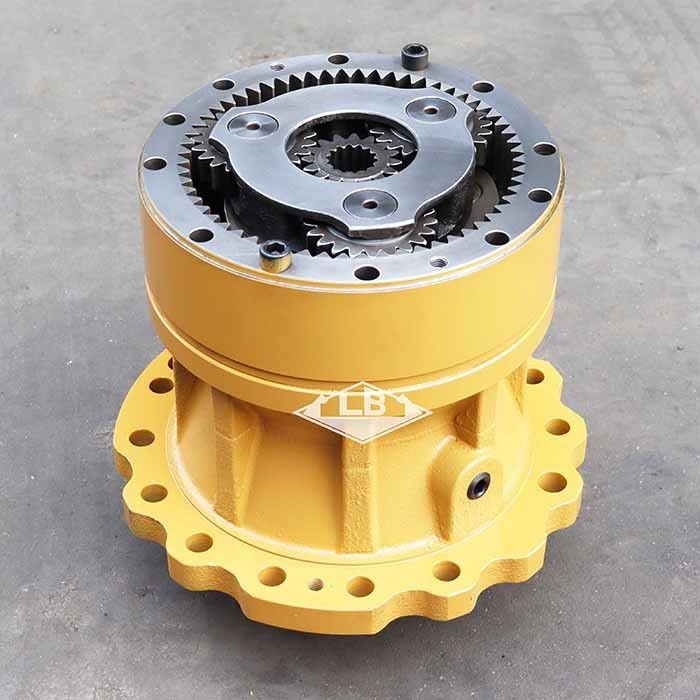

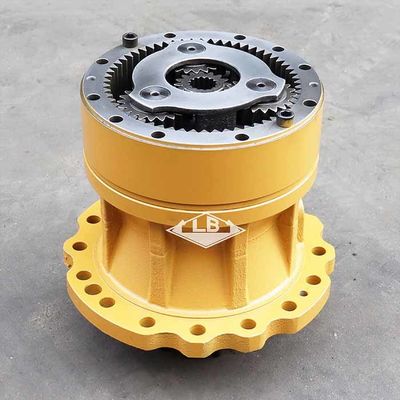

E 311C 311D 312C 312D SWING DRIVE 169-5549 1695549 E311 E 311C SWING GEARBOX
Dettagli:
Miglior prezzo Contatto
Informazioni dettagliate |
|||
Evidenziare: | Escavatore Swing Gearbox,Dispositivo di riduzione dell'oscillazione,Casella di cambio a trasmissione oscillante |
---|
Descrizione di prodotto
Parametri del prodotto
Pnome d'arte | E311 E312 cambio oscillante | |||||
Equipaggiatori | Applicare a E EXCAVATOR | |||||
La parte no. | 169-5549 | |||||
NO.1 denti di spline dell'attrezzatura solare | 14 spline | |||||
Denti dell'albero del pignone oscillante | 13T | |||||
Condizione dell'articolo | Nuovo | |||||
Il logo | LB | |||||
Peso lordo | 95 kg | |||||
MOQ | 1 pc |
Descrizione del prodotto

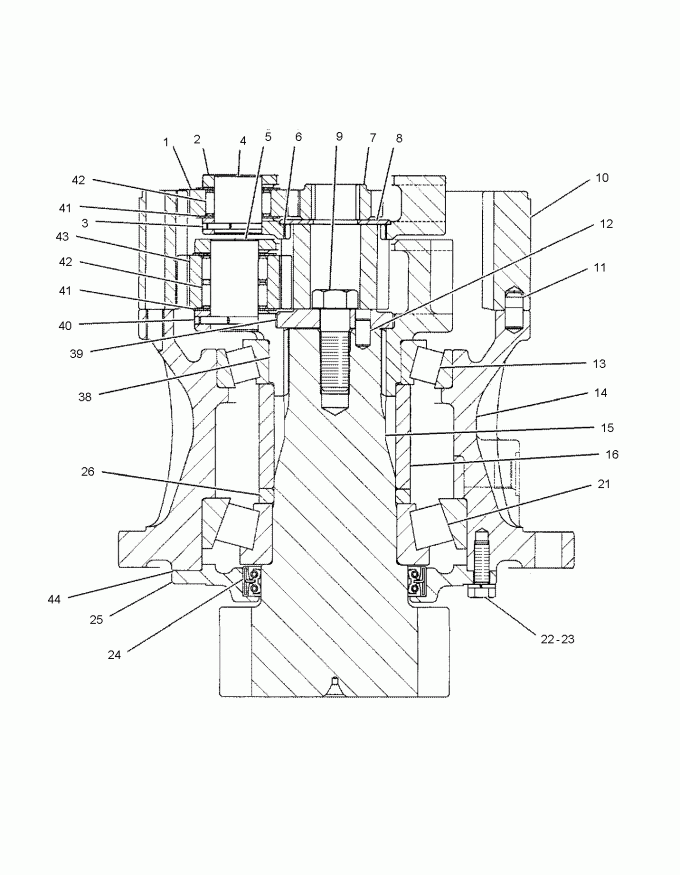

Ricambi per il tuo EXCAVATOR 312C:
In posizione. | Parte n. | Quota | Nome delle parti | Commenti |
---|---|---|---|---|
1. | 191-2600 | Altri prodotti | GER-PLANETARY | |
2. | 191-2599 | Altri prodotti | Carrier-Planetary | |
3. | 191-2604 | Altri prodotti | SPRING-PIN | |
4. | 191-2603 | Altri prodotti | SHAFT-PLANETARY | |
5. | 191-2609 | Altri prodotti | SHAFT-PLANETARY | |
6. | 191-2605 | Altri prodotti | Lavatrice30X75X3-MM THK) | |
7. | 191-2611 | Altri prodotti | GIAGGIO-SOLI | |
8. | 191-2612 | Altri prodotti | GIAGGIO-SOLI | |
9. | 114-8224M | Altri prodotti | BOLT(M20X1.5-THD) | |
10. | 191-2613 | Altri prodotti | RINGO D'INGRESSI | |
11. | 093-6089 | Altri prodotti | DOWEL | |
12. | 095-0893 | Altri prodotti | SPRING-PIN | |
13. | 7I-7625 | Altri prodotti | SOSTITUZIONI AS-ROLLER | |
14. | 191-2615 | Altri prodotti | Abitazione | |
15. | 191-2614 | Altri prodotti | Pinione a fusoliera | |
16. | 7I-7632B | Altri prodotti | SPACER(69,5-MM THK) | |
7I-7633B | Altri prodotti | SPACER(69,8-MM THK) | ||
7I-7634B | Altri prodotti | SPACER(70,1-MM THK) | ||
7I-7635B | Altri prodotti | SPACER(70,4-MM THK) | ||
7I-7636B | Altri prodotti | SPACER(70,7-MM THK) | ||
21. | 7I-7626 | Altri prodotti | SOSTITUZIONI AS-ROLLER | |
22. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
23. | 8T-4121 | [8] | Dura da lavare(11X21X2,5-MM THK) | |
24. | 099-0233 | Altri prodotti | TIPO DELLA LABRA DI FOLLA | |
25. | 099-0235 | Altri prodotti | Cage | |
26. | 7I-7638B | Altri prodotti | SPACER(10-MM THK) | |
7I-7639B | Altri prodotti | SPACER(10,03-MM THK) | ||
7I-7640B | Altri prodotti | SPACER(10,05-MM THK) | ||
7I-7641B | Altri prodotti | SPACER(10,08-MM THK) | ||
7I-7642B | Altri prodotti | SPACER(10,1-MM THK) | ||
7I-7643B | Altri prodotti | SPACER(10,12-MM THK) | ||
7I-7644B | Altri prodotti | SPACER(10,15-MM THK) | ||
7I-7645B | Altri prodotti | SPACER(10,18-MM THK) | ||
7I-7646B | Altri prodotti | SPACER(10,2-MM THK) | ||
7I-7647B | Altri prodotti | SPACER(10,23-MM THK) | ||
7I-7648B | Altri prodotti | SPACER(10,25-MM THK) | ||
7I-7649B | Altri prodotti | SPACER(10,28-MM THK) | ||
38. | 191-2607 | Altri prodotti | Carrier-Planetary | |
39. | 114-8223 | Altri prodotti | Sostituzione | |
40. | 191-2610 | Altri prodotti | SPRING-PIN | |
41. | 191-2602 | [12] | Lavatrice(32X56X1.2-MM THK) | |
42. | 191-2601 | [19] | Sostituzione | |
43. | 191-2608 | Altri prodotti | GER-PLANETARY | |
44. | 1U-8846B | TASCHETTA SELANTE |
